「西安快速门」堆积门红外光电防砸安装和调试方法

作者:西安快速门厂家   发布时间: 2019/8/12 9:45:36



「西安快速门」堆积门红外光电防砸安装和调试方法


Installation and debugging method of infrared photoelectric anti-smashing for "Xi'an Express Gate" stacking door



其实,只要买过或者咨询过快速卷帘门的客户对我们的产物还是有所了解的,就拿快速卷帘门的控制方式来说,分为:雷达控制、外线、光电、手动等的控制方式,不同的控制方式适合于不同的场合,一般客户在咨询的时代,我们会连带着给客户在控制方式上进行介绍。


In fact, as long as the customers who have bought or consulted the fast shutter door know something about our products, we can take the control mode of the fast shutter door as an example, which can be divided into radar control, infrared control, photoelectric control, manual control and so on. Different control modes are suitable for different occasions. General customers are in the age of consultation. We will introduce the control methods to our customers.


接下来小编来给大家讲一下快速卷帘门光电感应的安装,好好看哦。


Next, Xiaobian will tell you about the installation of photoelectric induction of the fast rolling shutter door, take a good look.

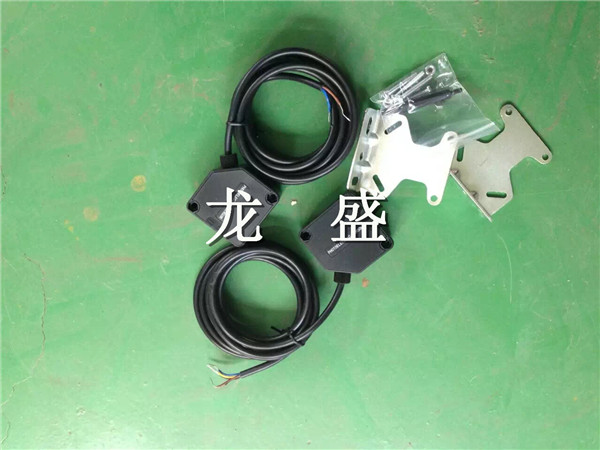

在安装快速卷帘门光电感应系统时,要将光电发光器和反射板水平固定在快速卷帘门框两侧,然后将快速卷帘门光电感应电缆连接到电控箱接线端子,按照标号码进行连接即可。


When installing the photoelectric induction system of the fast rolling shutter door, the photoluminescent device and the reflecting plate should be horizontally fixed on both sides of the fast rolling shutter door frame, and then the photoelectric induction cable of the fast rolling shutter door should be connected to the terminal of the electronic control box, which can be connected according to the label number.

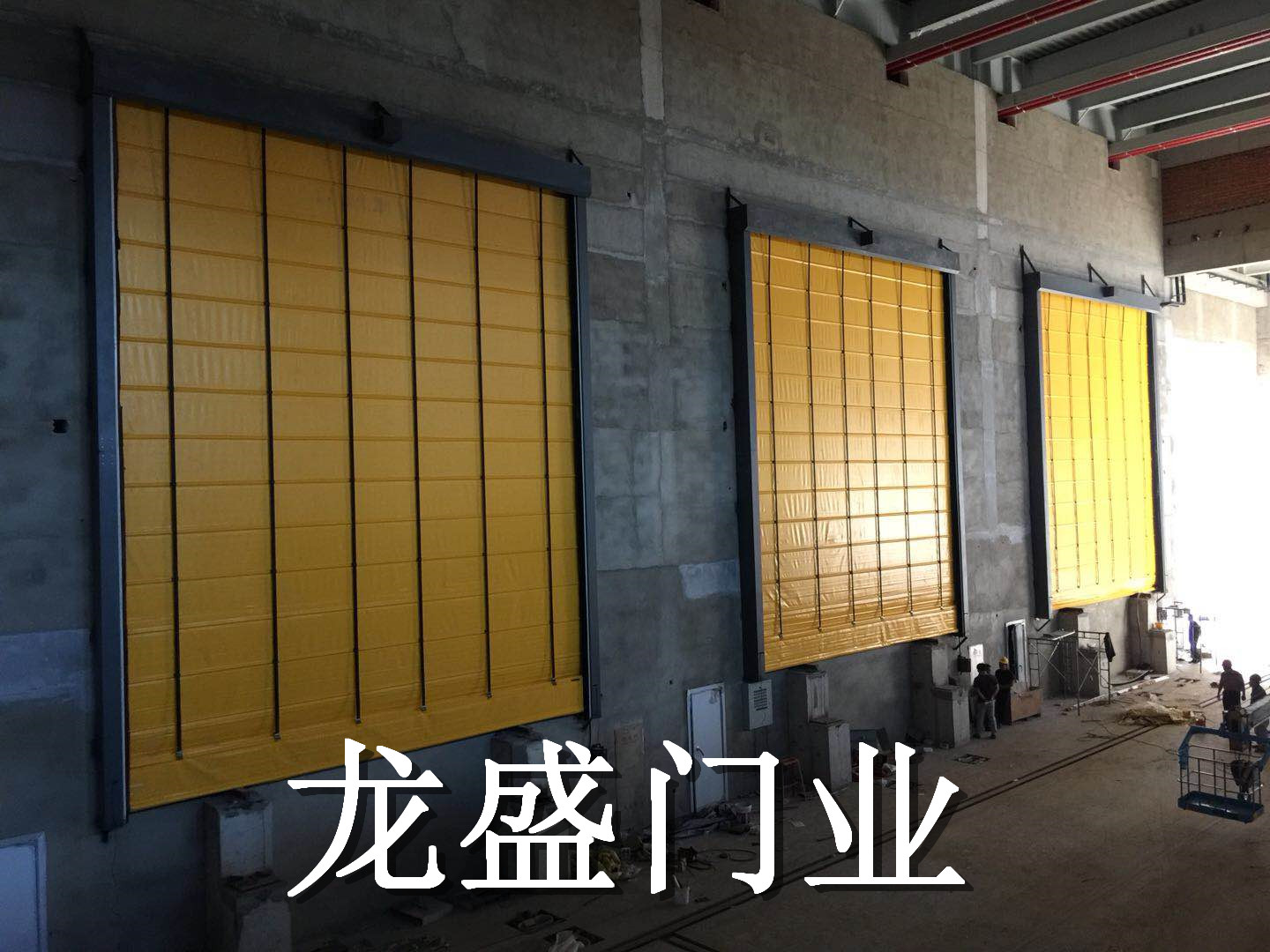

西安厂房快速门安装



下面讲的是快速卷帘门的接线问题,当电控箱接线端子无GND接口时,可将蓝线连接到G点接线口使用,在光电传感器白线连接到G点后,快速卷帘门下落到底,光电传感器就会有信号,物体碰到红外线,快速卷帘门门体上升。


The following is about the wiring problem of the fast shutter door. When the terminal of the electronic control box has no GND interface, the blue wire can be connected to the G-point wiring port. After the white wire of the photoelectric sensor is connected to the G-point, the fast shutter door falls to the bottom, and the photoelectric sensor will have a signal. When the object meets the infrared ray, the door body of the fast shutter door rises.


「西安快速门」堆积门红外光电防砸安装和调试方法


Installation and debugging method of infrared photoelectric anti-smashing for "Xi'an Express Gate" stacking door


若光电传感器白线连接到X6时,快速卷帘门门体下落到底后,光电传感器无信号,物体碰到红外线时无动作,这时说明线路接线错误,需立即矫正。


f the white line of photoelectric sensor is connected to X6, after the door body of the fast rolling shutter falls to the bottom, the photoelectric sensor has no signal, and the object does not move when it encounters infrared ray, this indicates that the wiring of the line is wrong and needs to be corrected immediately.



西安快速门红外对射防砸



当快速卷帘门光电传感器电缆线接通电控箱后,开启电源,发光器指示灯会亮起,绿色灯表明光电感应器可正常使用,黄色灯时说明信号未对准,需要手动上下左右调整光电传感器与反射板水平位置,待二者处于同一水平位置,发射器返回信号为绿灯,这时就可以正常使用。


When the cable of photoelectric sensor of fast rolling shutter door is connected to the electronic control box, the power supply is turned on, and the light-emitting indicator lights will turn on. The green light indicates that the photoelectric sensor can be used normally, and the yellow light indicates that the signal is not aligned. It is necessary to manually adjust the horizontal position of the photoelectric sensor and the reflector plate from top to bottom, so that they are in the same horizontal position. The transmitter's return signal is a green light, so it can be used normally.


在快速卷帘门光电感应器安装实现后,为了确认其使用效果,还要对光电传感器进行机能测试,测试时,若物体经由传感器,光电指示灯为黄色,高速门门体上升不下降,当物体离开感应区时,光电指示灯为绿色,门体延时后自动下降。


 After the installation of the photoelectric sensor for the fast rolling shutter door is realized, in order to confirm its use effect, the function test of the photoelectric sensor is also carried out. When the object passes through the sensor, the photoelectric indicator light is yellow, and the high-speed door body does not rise or fall. When the object leaves the induction area, the photoelectric indicator light is green and the door body delays. Automatic descent.


「西安快速门」龙盛门业是一家快速卷帘门出产厂家,十几年老品牌,品格好,售后贴心,种类周全,如果你想了解更多关于快速卷帘门安装的知识,可以拨打我们客服电话:13940183063.我们将竭诚为您服务。


"Xi'an Express Gate" Longsheng Gate is a fast shutter door manufacturer, more than ten years old brand, good character, intimate after-sales, a wide range, if you want to know more about the installation of fast shutter doors, you can call our customer service telephone: 13940183063. We will serve you wholeheartedly.
