「沈阳快速门」雷达感应开关助快速门完成自动开启

作者:沈阳雷达感应快速门   发布时间: 2019/6/19 17:46:43





「沈阳快速门」雷达感应开关助快速门完成自动开启

"Shenyang Express Gate" Radar Induction Switch Helps the Express Gate to Open automatically







雷达感应式开启是快速门在实际应用中,非常实用的一种开门方式,帮企业主们轻松管理通道,完成非接触式感应开门,十分便捷。


Radar induction opening is a very practical way of opening fast doors in practical applications. It can help business owners easily manage channels and complete non-contact induction opening, which is very convenient.


在很多的厂房,地下车库中,用户都会选择它,而且安全调试也比较简单,实用寿命高,维修成本低。


In many factories and underground garages, users will choose it, and safety debugging is relatively simple, practical life is high, maintenance cost is low.


雷达感应开关,又称微波感应开关,是根据多普勒效应为基础,采用最先进的平面天线。


Radar induction switch, also known as microwave induction switch, is based on Doppler effect and adopts the most advanced planar antenna.



沈阳快速升降门






「沈阳快速门」雷达感应开关助快速门完成自动开启


"Shenyang Express Gate" Radar Induction Switch Helps the Express Gate to Open automatically


在快速门的应用当中,有以下几个注意事项。


In the application of fast doors, there are the following points for attention.


1.禁止带电安装操作,严禁负载短路,在接线和调试过程中,应切断电源,避免发生危险。


1. It is forbidden to install on-line operation and short circuit of load. During wiring and debugging, power supply should be cut off to avoid danger.


2.禁止超荷载功率使用。


2. The use of overload power is prohibited.


3.当墙壁厚度小于10厘米时,该开关有可能会隔墙感应,有些用户发现快速门有误操作的现象,就是这原因。


3. When the wall thickness is less than 10 centimeters, the switch may be induced by the partition wall, which is the reason why some users find that the fast door is misoperated.

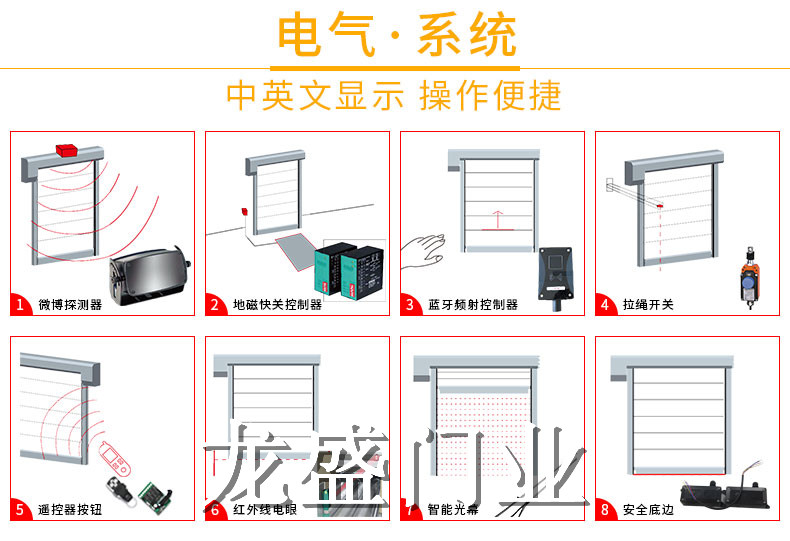

快速门开启方式图



4.在感应区域内,不要有影响其探测的障碍物或不停运动的物体,否则会导致快速门的频繁误开启。


4. In the sensing area, there should be no obstacles or moving objects affecting its detection, otherwise it will lead to frequent false opening of the fast door.


5.不要以动荡不定的物体作为安装基面,比如,有的用户选择安装在门罩上门,这样的话,当门在运行的过程中,不可避免的会有些震动,久而久之就会导致雷达感应的范围偏离。


5. Don't use unstable objects as the base of installation. For example, some users choose to install the door cover. In this case, when the door is running, there will inevitably be some vibration, which will lead to the deviation of radar sensing range over time.


建议安装在门上的墙面或者固定梁上。


It is recommended to install on the wall or fixed beam of the door.


功能与特点


Functions and Characteristics


1.智能感应:当有人进入本产品的探测范围,微波探测器工作点亮灯,当人离开探测范围后,灯自动熄灭。感应距离为6~8米(可调)


1. Intelligent induction: When someone enters the detection range of this product, the microwave detector works to light the lamp, and when the person leaves the detection range, the lamp automatically goes out. Induction distance is 6-8 meters (adjustable)


2.智能延时:开关在检测到人体的每一次活动后会自动顺延一个周期,并以最后一次人体活动的顺延时间为起始点。延时时间为18~25秒(可调)


2. Intelligent Delay: The switch automatically delays a cycle after detecting each human activity, and takes the last human activity delay as the starting point. Delay time is 18-25 seconds (adjustable)


3.工作方式:感应开关接通后,在延时时间段内,如有人体活动,开关将持续接通,直到人离开并顺延时间。


3. Working mode: After the induction switch is switched on, during the delay period, if there is human activity, the switch will continue to be switched on until the person leaves and delays the time.


以上功能是在快速门中使用最广泛的。


The above functions are most widely used in express doors.
