「丹东堆积门」快速门三菱变频器接线方法

作者:丹东快速门厂家   发布时间: 2019/6/29 18:26:44





「丹东堆积门」快速门三菱变频器接线方法



Connection Method of Mitsubishi Inverter for "Dandong Accumulation Gate" Fast Gate





1,推荐电路电线规格0.3mm2~0.75mm2



1. Recommended circuit and wire specifications 0.3mm2-0.75mm2



2,接线方法



2. Wiring method



2。控制电路接线时请将电线外皮拉开,应采用三角形端子接线。单线时可将外皮直接拉开。

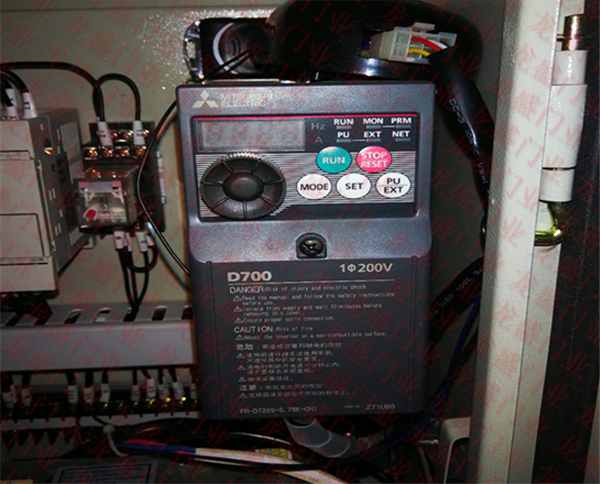

快速门三菱变频器



2. Wiring methodInsert the bar terminal or single wire into the junction for connection.



将棒状端子或单线插入接线口进行接线。



Insert the bar terminal or single wire into the junction for connection.



1)电线外皮的剥开尺寸以下所示。外皮剥开过长会有与邻线发生短路的危险。剥开过短电线可能会脱落。



1) The stripping size of the outer skin of the wire is shown below. If the skin is stripped too long, there will be a risk of short circuit with the adjacent lines. Stripping too short a wire may come off.



快速门三菱变频器接线说明




2)压接棒状端子。



2) Pressing rod terminal.



使电线的芯线部分从套管露出约0~0.5mm后插入。



The core part of the wire is inserted after exposing about 0-0.5mm from the casing.



压接后,认棒状端子的表面,未正确压接或者侧面有损伤的棒状端子不要应用。



After pressing, do not apply the rod terminal which recognizes the surface of the rod terminal, does not press correctly or has side damage.



3)将电线插入端子



3) Insert the wire into the terminal.



绞线状态且未应用棒状端子时,请用一字螺丝刀将开关按钮按入深处,然后在插入电线。



When the stranded wire is in state and the rod terminal is not used, press the switch button deep with a screwdriver, and then insert the wire.



注意:若直接连接绞线,为避免绞线与邻近端子或者接线发生短路或断路,请在接线前对电线进行充分绞合。



Note: If the stranded wire is directly connected, in order to avoid short circuit or break between the stranded wire and the adjacent terminals or wiring, please fully strand the wire before wiring.



请将一字螺丝刀对准开关按钮笔直压下,刀头的滑动可能会造成变频器损坏或者受伤事故。



Please align a screwdriver with the switch button and press it down directly. The sliding of the tool head may cause damage or injury to the frequency converter.



丹东堆积门」快速门三菱变频器接线方法



Connection Method of Mitsubishi Inverter for "Dandong Accumulation Gate" Fast Gate
